Description
Tank measuring sensor, suitable and required for VOTRONIC tank displays, one piece per tank. Ideal for plastic or metal tanks.

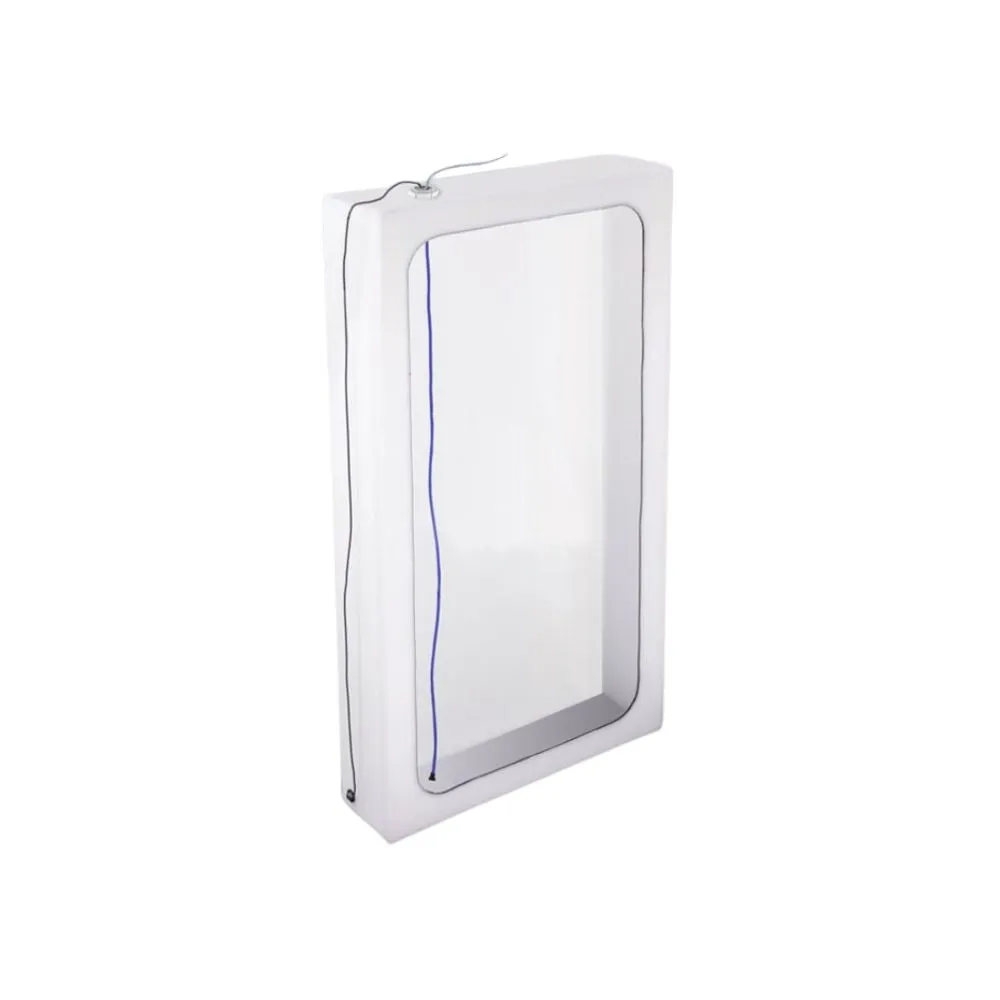

The Votronic Tank Electrode 30-110K-FL Tank Height 30 - 110 cm, 12 V and 24, is a tank measuring sensor that is suitable and required for Votronic tank displays. This tank transmitter is designed for precise level measuring of fresh, grey, and sewage water tanks of plastic and metal material in campers, caravans and boats. Measurement of the level is achieved fully automatically without mechanically moving parts according to the capacitive method of measurement, and it is transferred to the display unit via a three-core cable. The electronic system is completely sealed. Thus, it is extremely robust and insensitive to soiling.
Features
Votronic Tank Electrode 30-110K-FL
- Easy adaption to the existing tank height - flexible cord probe, can be cut easily to the tank height
- Linear, continuous signal of the level
- Suitable for 12V and 24V continuous operation
- Installation Possibility at the tank: Top
- Tank Height min-max (cm) 30-110
- Mounting diameter 63mm
- flange diameter 46.5mm
- Connection Cable 75cm
About Votronic
For 30 years, Votronic has engaged in the development and manufacturing of electronic devices for mobile applications. With more than a quarter century of experience in "Made in Germany" and the knowledge gained through close collaboration with different communities, they work continuously to further develop their products. 30 years in a fast-moving electronic world really is an eternity! Only truly innovative and high-quality product lines are able to compete successfully in the market for so long. The long-term customer satisfaction and the proven durability of our products are real characteristics of our excellent quality and reliability.
